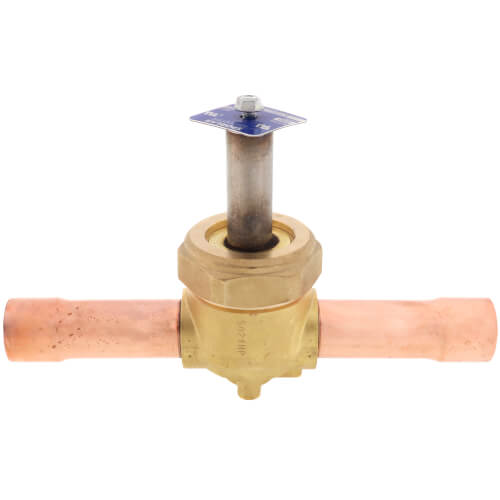

1-1/8″ ODF E25S290-HP Normally Closed Solenoid Valve Less Coil

Description

CONNECTION SIZE: 1 1/8″ ODF
PORT CONNECTION: 25/32″
APPLICATION TYPE: Normally Closed
COIL TYPE: MKC-1
SOLENOID OPTION: High Pressure
CONNECTION 1 STYLE: Solder
CONNECTION 2 STYLE: ODF X ODF
ADDITIONAL OPTIONS: Manual Lift Stem
MOUNTING HOLES: Not Provided
SERIES TYPE: E25

The Sporlan Type A, B and E series solenoid valves are provided as two basic types of solenoid valves. The most common is the normally-closed type, in which the valve opens when the coil is energized, and closes when the coil is de-energized. The other type is the normally-open valve which opens when the coil is de-energized and closes when the coil is energized. The valves are brass forged or brass bar stock. The E series has extended copper connections. For Air Conditioning or refrigeration applications it is important to use system capacity, refrigerant, type of fluid, temperature and pressures. It is not recommended to size by line size. Refer to literature or selection program for capacity data. Each valve is factory tested to ensure positive leak-free performance.

Types B25 and E25 Series are pilot operated solenoid
valves for refrigeration and air conditioning applications.
They are suitable for suction service because
very low pressure differential, 1 psi, is required for full
operation. These valves may be mounted horizontally,
on their side or in a vertical line.

The Type E25 series solenoid valves feature extended
solder type connections as standard. One important
benefit to the user is that all valves in the “E25â€?series
can be installed without disassembly using either
low or no silver content brazing alloy.

Features:
Class F coils
E series has extended copper connections. Disassembly for installation is unnecessary
Synthetic seating material for tight closing
Synthetic coated metal gaskets minimize external leaks
Maximum working pressure for the non high pressure (-HP) valves is 500 psi (34.5 bar), For the high pressure (–HP) E2-HP thru E10S1-HP valves 1,015 psi (70 bar) and E14-HP thru E43-HP 700 psi (48 bar)
