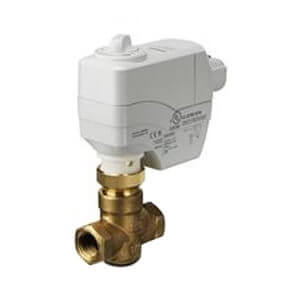

1/2″ NPT Powermite MT Series 2-Way Mixing N.C. Valve Actuator Assembly, 24Vac, 1.6 Cv

Description

The Powermite 599 Series ANSI Class 250 MT Series2-way valve bodies work with any MT Series pneumatic orelectronic actuator with a 7/32-inch (5.5-mm) stroke. They are suitable for normally open or normally closed control. Typical applications include control of hot or chilled water, water-glycol solutions up to 50% and steam up to 15 psi (steam only with stainless steel trim). Compatible actuators deliver a minimum of 67 lbs (300 N) of force.

Product Features

Direct-coupled universal bonnet
Female NPT end connections with either brass trim or stainless steel trim.
ANSI Leakage Class IV (0.01% of Cv)

Product Specifications

Voltage: 24Vac
Valve Type: 2-Way
Trim: Brass
Position: Normally Closed
Cv: 1.6
Control Signal: 0-10V
Connection: NPT
Actuator: SSC61.5U
Mounting: NEMA 1
Close-Off Pressure: 95
Spring Return
Valve Size: 1/2″
