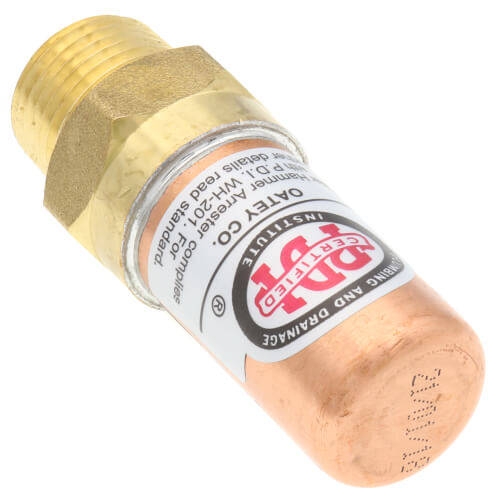

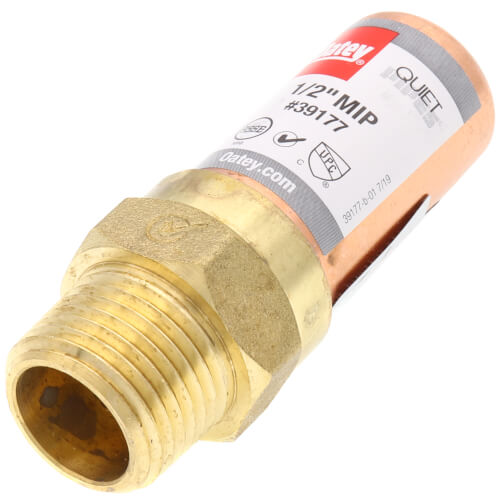

1/2″ Quiet Pipes Male Straight Hammer Arrestor, AA

Description

Oatey Quiet Pipes Hammer Arrestors shall be installed in any small
diameter pipe supply application which could experience water hammer
due to quick closing valves or faucets. Arrestor chambers shall be
specifically sized to accommodate and dissipate energy generated by
such valves and faucets. Arrestors shall be effective when installed at
any angle. Arrestor shall be made of lead-free copper and include a
polypropylene piston with two NBR O-rings. Arrestors shall be ANSI/
ASSE1010-2004, listed and approved for installation with no access
panel required. Compatible with press fittings or push fittings.

Features:
Material: Copper
Overall Height: 4.76″
Arrestor Body Diameter: 0.87″
Shape: Straight
Size: AA
Fitting Type: MIP
Fitting Size: 1/2″
Max Working Pressure: 0-60 PSI
Temperature Range: 33°- 180° F
