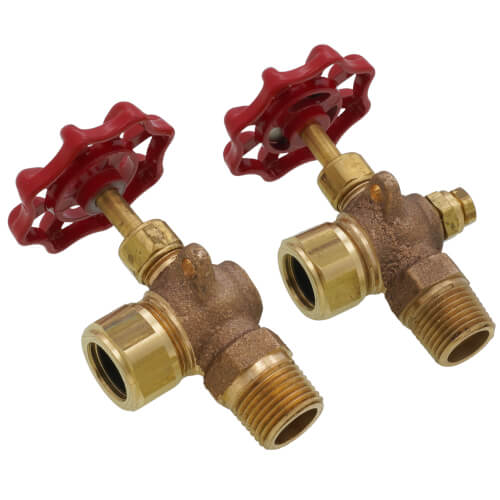

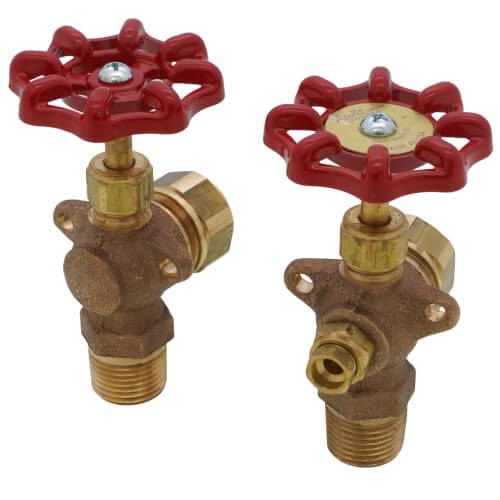

1/2″ Standard Bronze Gauge w/ Aluminum Wheel w/ 12″ Glass & Rod

Description

Use for all types of liquid level verification; available with 3/8″ or 1/2″ NPT male pipe connections. Aluminum or plastic composition hand wheels; EPDM gauge glass gaskets standard. Other glass gaskets available. Automatic ball checks help prevent the loss of fluids should the glass be broken.

Features:
Ball checks standard on 20-150 models
Equipped with two copper guard rods
Standard 1/4″ needle drain valve in lower arm
Rated: 125 psig @ 350°F, 300 psig @ 100°F
Glass OD: 5/8″
Glass Length: 12″
CRN Registered OF6616.5C
