1″ 2-Way N/O Brass Valve Actuator, 10 PSI, Female x Female (10 Cv)

Description

Powermite SQS65 and SQS65.5 Electronic Valve Actuators require a 24 Vac supply and receive a 0 to 10 Vdc or a 0 to 1000 Ohm control signal to proportionally control a valve. SQS85.53 electronic valve actuators require a 24 Vac supply and receive a floating control signal to provide floating control. Actuators work with Powermite MT Series Valves with a 7/32-inch (5.5 mm) stroke.

Applications:
The SQS Electronic Valve Actuators are for use in small to medium HVAC installations with Powermite MT Series valves that have a 7/32-inch (5.5 mm) stroke.

Features:
Maintenance-free with reversible motor
Voltage or resistance signal input
Close off up to 160 psi
Position output signal 0 to 10 Vdc
Small, compact design
Manual adjustment knob with indication of stroke allows for repositioning in power-off condition (SQS65U actuator only)
Mechanical spring allows the valve to return to normal position in power off condition (SQS65.5U and SQS85.53U)
Suitable for low pressure (15 psig) steam applications

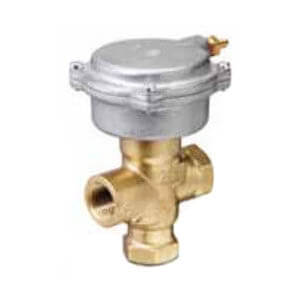

***Note: Image may not be actual representation of item.
