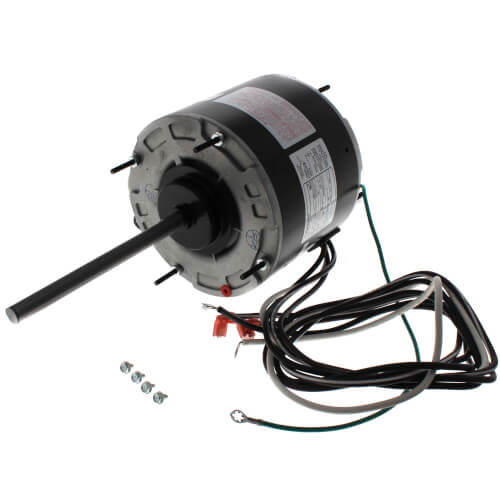

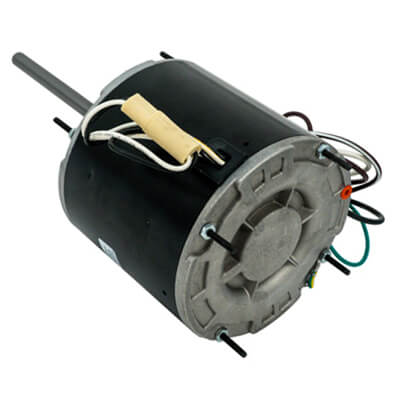

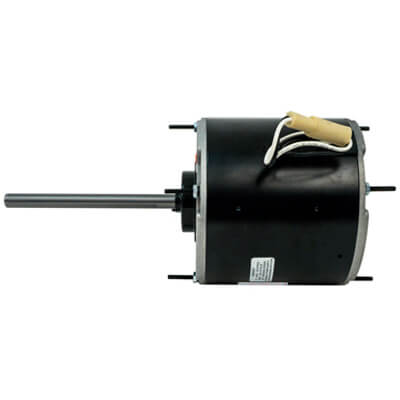

1-Speed, 5-5/8″ High Temp. Condenser Fan Motor (1/4 HP, 825 RPM, 208-230 V)

Description

Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part numberFeatures
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly bandâ€?or extended clamp screw mounting.
Class F Insulation
70°C Ambient
Ball Bearing
Single Speed
Drilled and tapped holes in the
shell for Rheem mounting
Reversible
All Angle Mounting
Extended Thru Bolts
36�Leads
Energy Efficient PSC
Design

Specifications
H.P. 1/4
Amps 1.3-1.4
RPM 825
Bearings Ball
Shaft Dimension (In.) 1/2 x 6-1/2
Length Less Shaft (In.) 4-5/8
Voltage 208 – 230
Capacitor Required 5MFD/370V
