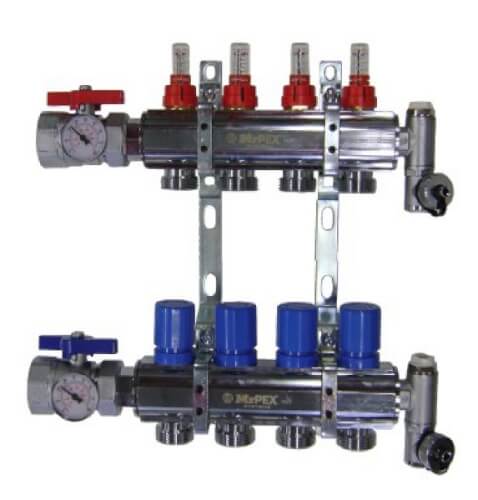

10 Loop 1-1/2″ Chrome Plated Brass Manifold w/ Flowmeter & Ball Valve (Fully Assembled)

Description

Note: A : VA 10 Adapter Ring is required when using a Mr. PEX actuator with a manifold.

Mr PEX 1.5″ Brass Manifolds are made from high-quality extruded brass and offered in 2 to 10 loop pre-assembled configurations (no 7 or 9 loop version). The supply side features balancing manifold with adjustable flow-meters for flows up to 1.6 gpm per loop. The return side features a valved manifold with on/off valves. The manual plastic cap on the return valve can be removed to accommodate a valve actuator. The return balancing valve disc is designed to enable exact adjustments of small flows while still being able to handle large flows with minimal resistance. The combined branch Cv value is 1.64 gpm and the manifold body accommodates flows up to 22 gpm.

This manifold requires (20) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
4320750: 3/4″ PEX to EK25 Loop Fitting Assembly
This fitting will connect 3/4″ PEX to a loop of the Manifold
4320625: 5/8″ PEX to EK25 Loop Fitting Assembly
This fitting will connect 5/8″ PEX to a loop of the Manifold

PEX-AL-PEX Loop Fitting Assemblies Options
2430750: 3/4″ PEX-AL-PEX to EK25 Loop Fitting Assembly
This fitting will connect 3/4″ PEX-AL-PEX to a loop of the Manifold

Optional Installation Accessories:

Loop End Cap
3610004: Manifold Loop End Cap
These allow you to cap off a loop of the manifold if it will not be used.

Supply/Return Adapter Options
Supply/Return Adapters

Actuators
5120700: Thermal Actuator for Mr. PEX Manifolds (4 Wire)
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.

5120701: Thermal Actuator for Mr. PEX Manifolds (2 Wire)
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.

Note: A : VA 80 Adapter Ring is required when using a Mr. Pex actuator with a Rifeng brass or stainless steel manifold.
