10 Loop 1-1/4″ Stainless Steel Manifold w/ Flowmeter & Ball Valve (Fully Assembled)

Description

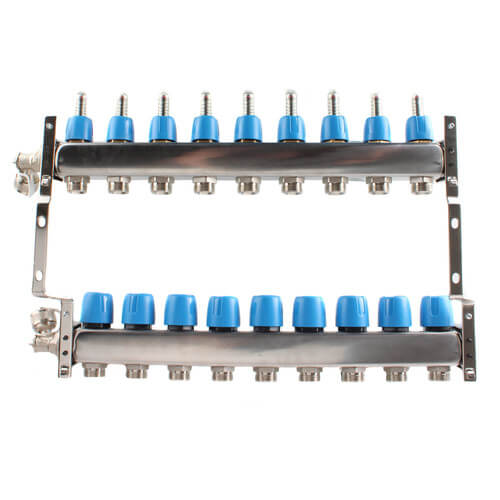

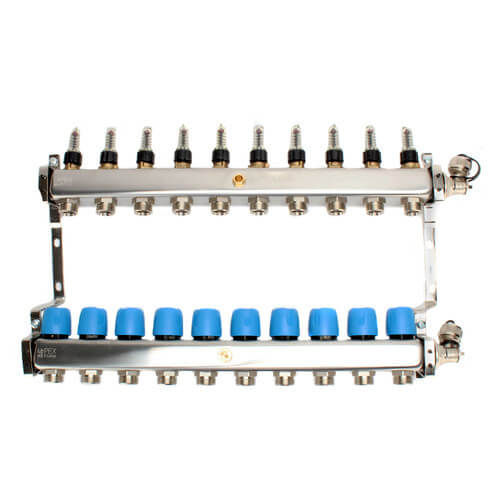

Note: Image displayed does not represent actual product.

Note:This manifold requires 20 Loop Fitting Assemblies (please see below).

Mr PEX 1-1/4 Stainless Steel Manifold is made from high
quality stainless steel, and is offered in 2 through
12 loop configurations. The manifold comes mounted
on brackets and it is equipped with full port ball valves
provided with thermometers, manual air vents and fill/drain
valves. The branch Cv value is 1.38 and the manifold body
accommodates flows up to 14gpm.

The SUPPLY (upper) manifold is fitted with balancing
flowmeters with readable range of 0 to 2 GPM that
allow flow adjustment of each individual loop. The
flow meters have a brass body and the sight glass is
made from temperature and impact resistant plastic material,
all components are antifreeze resistant up to a 50% mix.

The RETURN (lower) manifold, has manual on/off valves that controls the flow for each
individual circuit. The manual knob can be removed to accommodate the Mr PEX actuators
(part# 5120700 & 5120701).

Supply and return mains can be connected from either left or right sides. The manifold comes ready for a left hand connection. Connection from the right can be done by removing the manifold body from the brackets and flipping them over.

This manifold requires (20) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
4310500: 1/2″ PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2″ PEX to a loop of the Manifold
4310375: 3/8″ PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8″ PEX to a loop of the Manifold
4310625: 5/8″ PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8″ PEX to a loop of the Manifold

PEX-AL-PEX Loop Fitting Assemblies Options
2410500: 1/2″ PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2″ PEX-AL-PEX to a loop of the Manifold
2410625: 5/8″ PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8″ PEX-AL-PEX to a loop of the Manifold

Optional Installation Accessories:

Loop End Cap
3610003: Manifold Loop End Cap
These allow you to cap off a loop of the manifold if it will not be used.

Supply/Return Adapter Options
Supply/Return Adapters

Actuators
5120700: Thermal Actuator for Mr. PEX Manifolds (4 Wire)
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.

Manifold Thermometer
3230001: Manifold Thermometer (Box of 2)
These display the temperature of the supply and return sides of the manifold.
