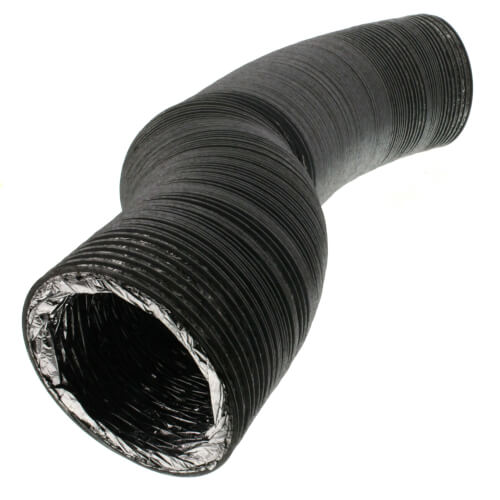

16″ x 25 Ft. Fab 5 Fabriflex Low Pressure Duct (Non-Insulated)

Description

A quality non-insulated flexible air duct of reinforced aluminized trilaminate
which is mechanically locked together by a corrosive resistant galvanized steel
helix. A ULC-S110 and UL-181 Class 1 product, formed by the protective outside
helix which interlocks with the smooth and reinforced line to produce an
exceptional low to medium pressure duct often required by VAV commercially
deigned air conditioning and heating applications.

Pressure Rated:

* 10″ w.g. positive
* 10″ w.g. neg thru 12″ dia.
* 5″ w.g. neg 14″ & 16″ dia.
* 1″ w.g. neg. 18″ & 20″ dia.

Rated Velocity:

* 5500 F.P.M.

Core:

* Trilaminate of Aluminum Foil, Fiberglass and Aluminized Polyester

Note: This product is compressed by the manufacturer and then packaged for
shipping purposes. To reach the specified length, the product needs to be
unpackaged and stretched.
