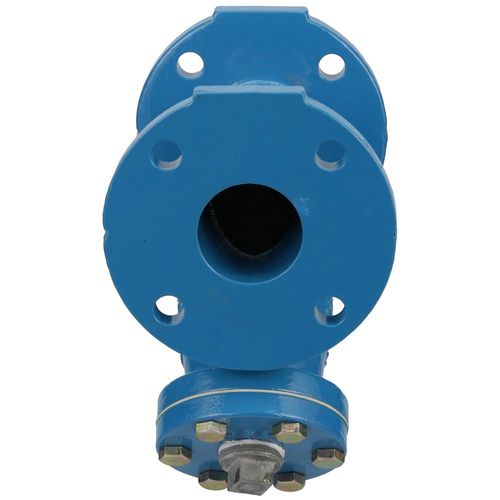

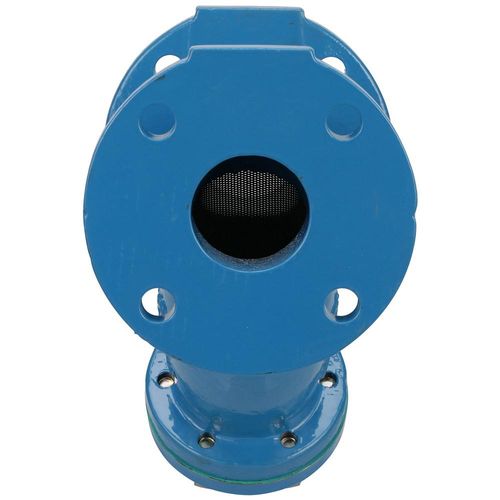

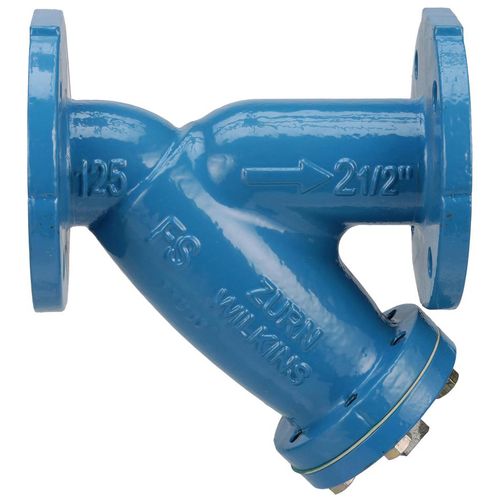

2-1/2″ FS/FSC Cast Iron “Y” Type Strainer

Description

The FSC Ductile Iron Wye Type Strainer is used to protect downstream equipment
from premature fouling and failure due to buildup of sediment and debris. Ideal
for use with large diameter backflow assemblies, it features a 300 series
perforated stainless steel screen and FDA approved fusion epoxy finish coating,
included both inside and out. The FSC also includes a ductile iron main valve
body and access cover, and flanged end connections. Pressure and temperature
ratings include 200 psi at 150°F WOG and 125 psi at 450°F steam. While
horizontal installation with the strainer cap facing downward is preferred, the
strainer provides protection in any orientation.

* Versatile installation orientation offered (horizontal preferred)
* Design ensures longer life for backflow preventers
* Wye type strainer ideal for domestic and commercial water applications
* Perforated stainless steel screen protects against equipment malfunction and
premature failure
* Low-lead law compliant
* MIL-S 16293F Type 2
