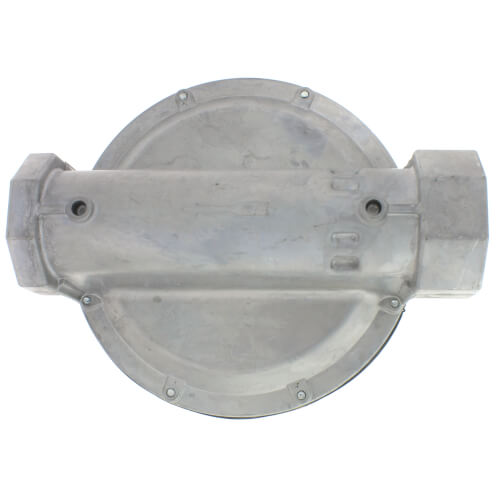

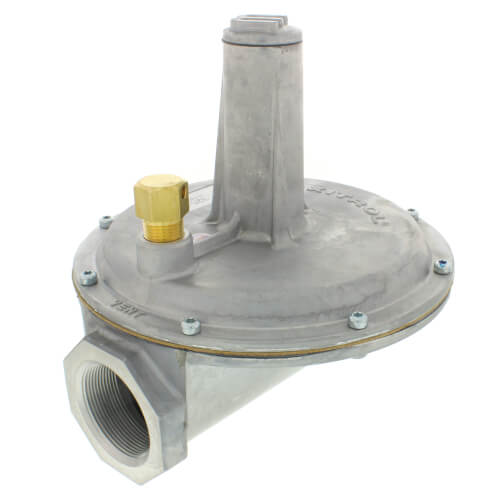

2″ Lever Acting Regulator w/ Positive Dead-End Lock-Up & Vent Limiter (2,250,000 BTU)

Description

Note: This product should be installed by a licensed gas fitter.

325 Series pounds to inches regulators are for use on residential, commercial, and industrial applications.

The 325 Series features a high leverage valve linkage assembly to deliver positive dead-end lock-up. The regulators are capable of precise regulating control from full flow down to pilot flow. These regulators are suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.

The vent limiter eliminates the need to run vent piping to a safe area in the event of a diaphragm rupture, gas escapement is limited to within the ANSI/CSA standards level.

Vent limiters are designed for use indoors and in spaces where and in spaces where limiting the amount of gas escapement due to diaphragm failure is critical. Vent limiters are not to be used outdoors if they are exposed to the environment.
