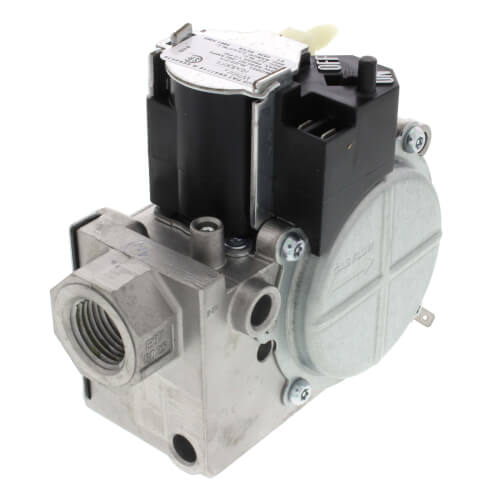

24V Single Stage HSI/DSI Gas Valve, Fast Opening, Replaces Goodman 36J22Y-202, 0151M00037, 0151M00037S
Original price was: $83.81.$25.14Current price is: $25.14.
1000 in stock
Description
single stage HSI/DSI gas valve with maximum regulation feature, 24 Vac, 1/2 in X 1/2 in NPT, Fast Opening, Inlet / Outlet Pressure Taps, LP Gas Conversion Kit. Replaces Goodman 36J22Y-202, 0151M00037, 0151M00037S
Product Features
Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
Fast open, single stage
Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounts in any position including upside down
Product Specifications
Operating Voltage: 24 Vac 50/60 Hz
Temperature Operating Range: -40 to 175°F (-40 to 79°C)
Maximum Pressure Rating: 1/2 in. PSI 14.0 in. WC
Pilot Gas Connection: Compression fitting for 1/4â?OD tubing
Inlet & Outlet Pressure Taps: 1/8â?NPT
Agency Approvals: CSA (Canada & US)
Reviews
There are no reviews yet.
