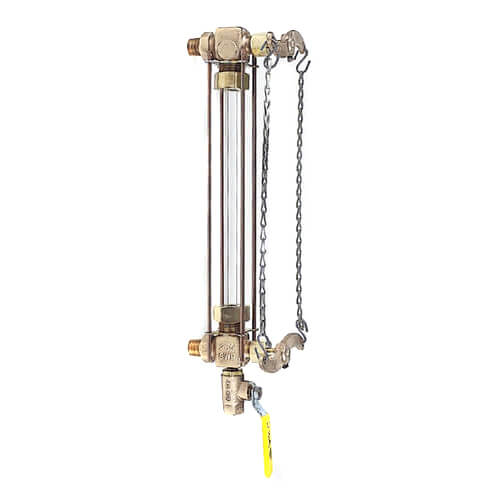

3/4″ Chain Lever Water Gauge w/ 16″ Glass & Rod (Conforms to ASME Check Reqs)

Description

Lever on standard 12-foot chain allows operator to open and close valves that would be
beyond reach. Valve stems operate on quarter-turns.

Features:
Rated 250 psig @ 400°F, 500 psig @ 100°F
Use on large boilers with inconvenient columns
Automatic and non-automatic models
Furnished with 12 feet of chain and 5/16″ diameter full-blow valve with safety handle
High pressure glass standard with the 24 series
CRN Registered
Standard PTFE reinforced gauge glass gasket
Glass OD: 3/4″
Glass Length: 16″

**Image is not exact representation of item.**
