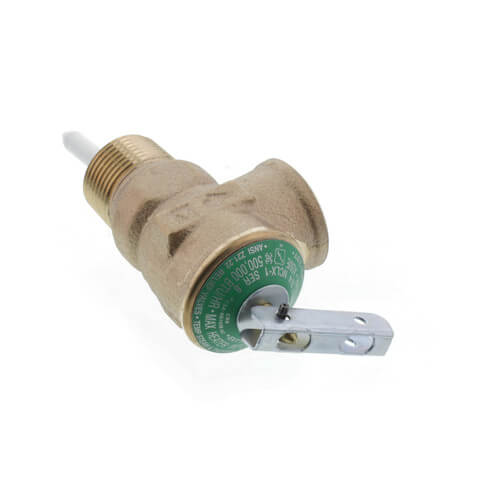

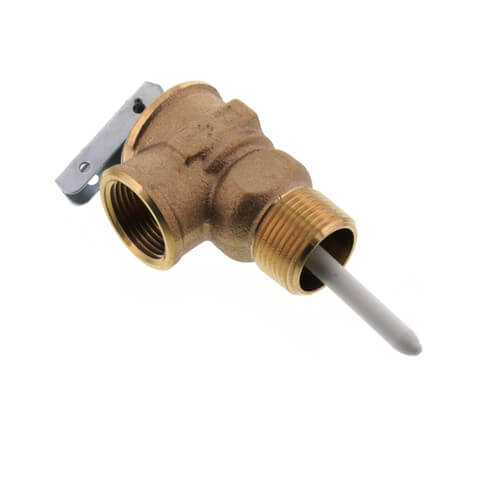

3/4″ NCLX-1 Domestic T&P Relief Valve, Lead Free (1″ Element)

Description

Please note: Thermostat Length in the Specs box is an approximation. The exact measurement is 1-5/16″

The NCLX incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). Cast bronze body with male inlet and female outlet, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. Test lever standard. Temperature relief setting is 210°F (99°C).

Application:
Temperature and pressure protection for domestic water heaters and storage tanks.

Features:
Completely automatic and reseats after temperature or pressure relief. Ideal for all domestic water heater applications
Incorporates an inert thermal element coating – Provides effective isolation from mineral deposits (liming) and
galvanic corrosion
1″ Element
Approvals – The NCLX valves are certified to ANSI Z21.22 / CSA 4.4 and capacity certified to ASME Boiler Code Section IV (1/2″ sizes ANSI / CSA listed only).
