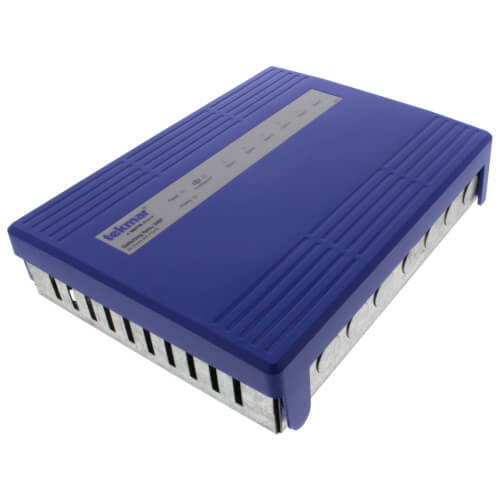

306V Zone Control Valve – 6 Zones w/ Priority

Description

The Zone Valve Control 306V connects up to six thermostats and operates zone valves to provide heating to a zoned hydronic heating system. The 306V operates a system pump whenever a zone valve opens. Zone 1 can operate either a zone valve or a circulator to provide heat to an indirect domestic hot water tank with optional priority over zones 2 through 6. The 306V includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the domestic hot water tank to maximize energy savings. The 306V provides a RoomResponseTM signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.

Features
Away signal shared between tekmar thermostats
CSA approved
Compatible with 2, 3 and 4-wire zone valves
Compatible with all low voltage thermostats
Four ground screws
Fuses protect transformers and pumps
LED for each zone, priority, end switch and RoomResponseTM
Post purge
Priority override
Pump exercising
RoomResponseTM signal
Top, bottom and back conduit knockouts
Two spare fuses included
Unlimited zone expansion
Zone priority

Specifications
Enclosure – Cover: ABS plastic, Base: galvanized steel, NEMA type 1
Approvals – CSA C US
Ambient conditions – Indoor use only, 32 to 122°F (0 to 50°C), RH 90% non-condensing
Power supply – 115 V (ac) ±10%, 60 Hz, 11 A
Control load – 7 VA
Zone valve outputs – 24 V (ac), 2 A max per output
Zone valve end switch – 24 V (ac)
System Pump – 230 V (ac), 5 A, 1/3 hp
Boiler XX end switch 24 V (ac), 5 A
Transformer – 40 VA, expandable to 80 VA with additional transformer M3069 (sold separately)
Fuses – T5A 250 V slow blow, two spare fuses included
Pump relays – 230 V (ac), 5 A, 1/3 hp
Boiler XX end switch – 24 V (ac), 5 A
DHW end switch – 24 V (ac), 5 A
Mod boiler output – 0-10 V (dc) 500 ohm min load impedance / 4-20 mA 1 k ohm max load impedance
