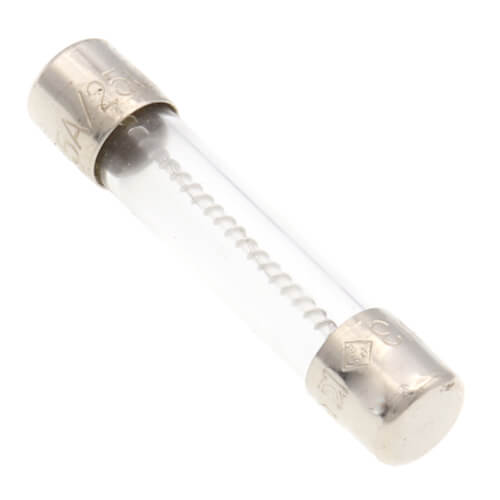

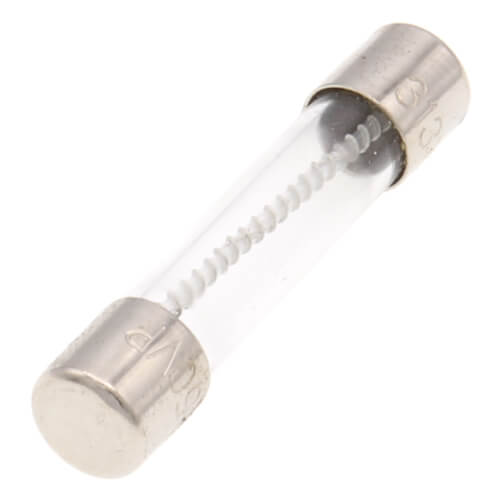

5 Amp Slo-Blo Time-Delay, 3AG Type Glass Fuse, Pack of 5 (250V)

Description

The 3AG Slo-Blo® fuse solves a broad range of application
requirements while offering reliable performance and cost effective circuit protection.

Features:
313 and 315 series fuses have time-delayed in the overload range, which provides superior protection inductive loads such as motors, transformers, and solenoids.
3AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies.
Guesswork and time-consuming circuit testing is eliminated.
This unique design offers the same quality performance characteristics as the standard 3AG fuse design.

Specifications:
Ampere Rating (A): 5
Body: Glass Body
Nominal Melting: I2T (A2sec) 267
Interrupting Rating: 10000A@125VAC
Marking Code: VX
Moisture Sensitivity Level: Contact Littelfuse
Nominal Cold Resistance (Ohms): 0.02135
Opening: Slo-Blo/Time Lag (T)/Time Delay
Min Operating Temp °C: -55
Max Operating Temp (°C): 125
Package Size: 3AB/3AG (6.3x32mm)
VAC (V): 250
