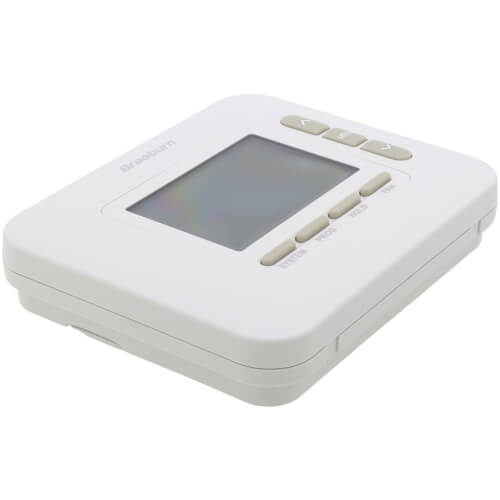

7 Day Programmable Thermostat (3 Heat/2 Cool) – Premier Series

Description

Note: Additional Information regarding Product and Installation can be found in the PDFs.
Product Overview

The universal auto changeover thermostat shall be a Braeburn model number 4235, 4.25â€?high x 5.12â€?wide x 1â€?deep, powered with either 24 Volt AC or with two “AA”
Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer and program settings. The thermo stat shall be compatible with low
voltage single or multistage gas, oil, or electric heating or cooling systems and single or multistage heat pumps with auxiliary heat. Also compatible with 250mv �750mv

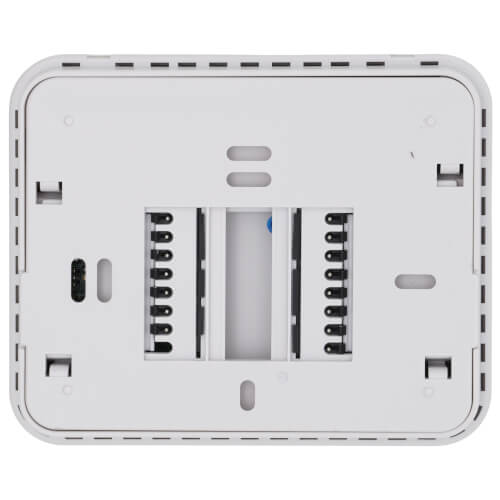

millivolt heating only systems and 2 or 3 wire hydronic zone systems. The thermostat shall have an adjustable bright blue backlight display, separate sub-base and
multi-level keypad lockout. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between
5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter, UV
and humidifier pad check monitor, adaptive recovery mode (ARM â„?, programmable fan mode, residual cooling fan delay, indoor or outdoor remote sensor capability and
multi-function dry contact input. Thermostat can be used to control an external humidifier or dehumidifier. The cooling system can also be used to reduce humidity

Product Features
7Day, 5-2 Day or Non-Programmable
Large 5 sq. in. Display with Bright
Blue Backlight
Auto or Manual Changeover
SpeedBar Multi-Function Button
Adjustable Temperature Limits
Indoor or Outdoor Remote Sensing
Meets Energy Aware ® Guidelines*
SpeedSet Programming Mode
Separate User and Installer Reset Buttons
Auxiliary Heat Fossil Fuel Option
Hardwire or Battery Powered
Multi-Level Keypad Lockout
Adaptive Recovery Mode (ARM )
Programmable and Circulating Fan Modes
Temporary Override Limits
Residential or Commercial Modes
Compatible with 2 or 3 Wire Hydronic
Zone Systems
Trilingual Packaging and Instruction
Card with FREE Contractor Branding
