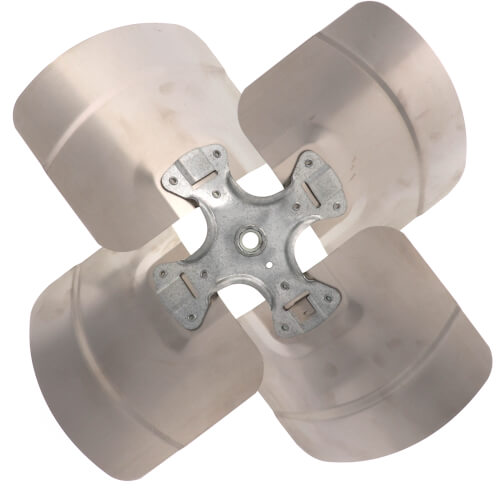

8″ 4 Wing CW Fan Blade w/ Hub (33°)

Description

MARS fixed hub heavy duty condenser fan blades have been designed to serve
as drop-in replacements for many OEM applications. Hub location is on the intake side unless otherwise noted. Always note original fan blade hub location (intake or discharge) and match when selecting fixed hub replacement fan blades.

Number of Blades: 4
Pitch (Degree): 33
Bore Diameter Inches: 1/2
Rotation: CW
Diameter Inches: 18
Material: Aluminum
Max RPM: 1140
Depth Inches: 5 11/64
CFM @ 0.000-In. SP: 3325
CFM @ 0.300-In. SP: 2441
Min H.P. @ 0.000-in. SP: 0.2615
Min H.P. @ 0.300-in. SP: 0.3366
