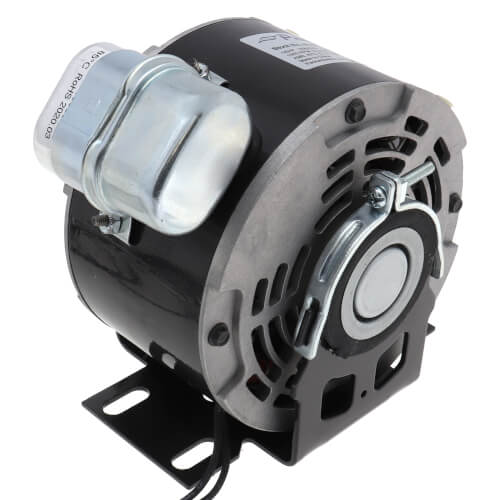

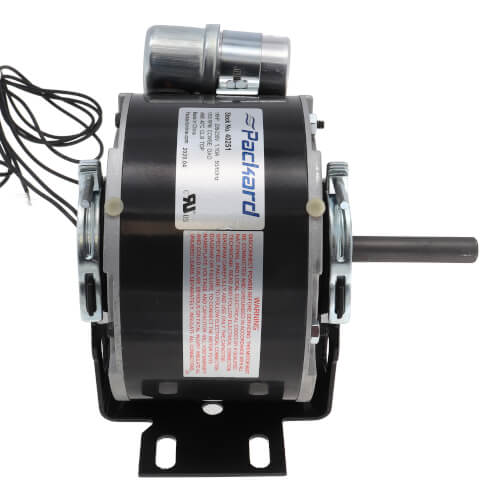

Copeland Resilient Base Motor Replacement (1/6 HP, 208-230V, 1550 RPM)

Description

Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part numberFeatures:
For Use In these Condensing Units: C3AH-0100-CAV, C3AM-0100-CAV, C7AB-0150-CAV, C3AM-0203-CAV, E3AH-A150-CAV, E3AM-A101-CAV, F3AD-0301-CFV, F3AM-0201-CFV

Specifications:
H.P.: 1/6
Speeds: 1
Volts: 208-230
Amps: 1.10
Rotation: CCWSE
RPM: 1550
Bearings: Sleeve
Enclosure: Open Air Over
Mounting: Resilient Base
Shaft Length (In.): 3
Motor Type: Permanent Split Capacitor
Overload: Automatic
Phase: Single
Shaft Diameter (In.): 1/2
Hertz: 50/60
Shaft Dimension (In.): 1/2 x 3
Length Less Shaft (In.): 4 1/4
