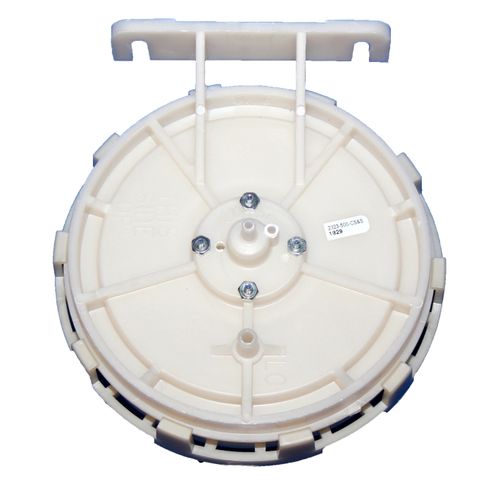

Differential Pressure Transmitter (0-3″ WC)

Description

The 2323 Differential or Static Pressure Transmitters have
been designed to sense differential or static pressure across
fans, coil, filters, or between two reference points, and
transmit a 3 to 15 psig signal to controlling and indicating
devices such as receiver controllers, receiver gauges, and
sensitive pressure switches.
These devices are one-pipe transmitters which require an
external restrictor in the supply line. Their design features
pneumatic feedback, which ensures accuracy and stability
over the entire operating range. Mounting ears are provided
for strain-free mounting on ducts or other flat surfaces.
