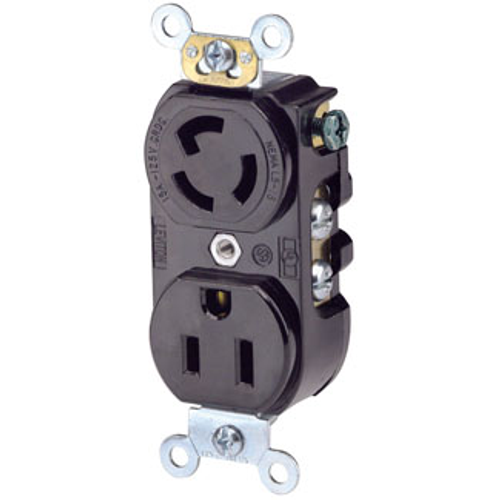

Duplex Receptacle Outlet, Straight Blade and Locking, Smooth Face, 15A, 125V 2 Hot 2 Neutral Returns, 2-Pole, 3-Wire, Self-Grounding (Black)

Description

Features
* L5-15R/5-15R
* Leviton’s Industrial Grade Locking Devices are built to provide unparalleled
quality and superior performance in the most severe industrial settings.
Leviton combines the best materials available with superior production
standards to produce a broad selection of Locking Devices of unmatched
flexibility and dependability.

Specifications
* Amperage: 15 A
* ANSI: C-73
* Terminal Screws: Brass 10-32
* Grounding Screw: Brass 8-32
* Strap Material: Steel
* NOM: 57
* UL Fed Spec WC-596: File E13399
* At Rated Voltage: 1/2 HP
* Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
* Grounding: Grounding
* Current Limiting: Full Rated Current
* Dielectric Voltage: Withstands 2000V per UL498
* Screw Terminal Torque: 14-18 in-lbs
* Line Contacts: Brass .031 Thick
* Warranty: Limited Lifetime Warranty Warranty
* Wire: 3
* Environment: Dry
* Operating Temperature: -40 °C to 60 °C
* RoHS Compliant: FALSE
* CSA C22.2 No. 42: File 152105
* Country of Origin: Mexico
* Body Material: Nylon
* Pole: 2
* Voltage: 125 VAC
* UL498: File E13399
* Face Material: Nylon
* Yoke: Zinc-Plated Steel
* Termination: Back & Side
* Terminal Accom.: 18-10 AWG
* Flammability: Rated V-2 per UL 94
* Color: Black
* NEMA: WD-6
* Product ID: Ratings and NEMA I.D. permanently marked on device
* Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
