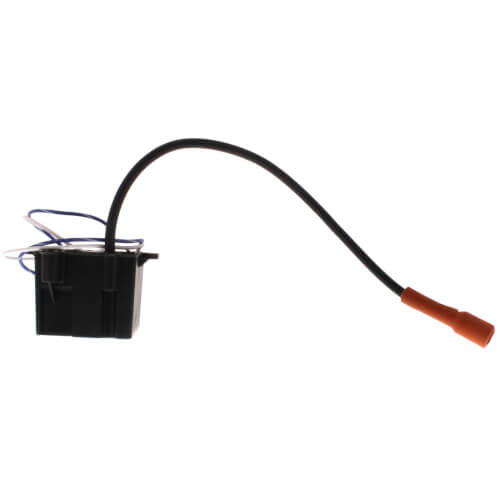

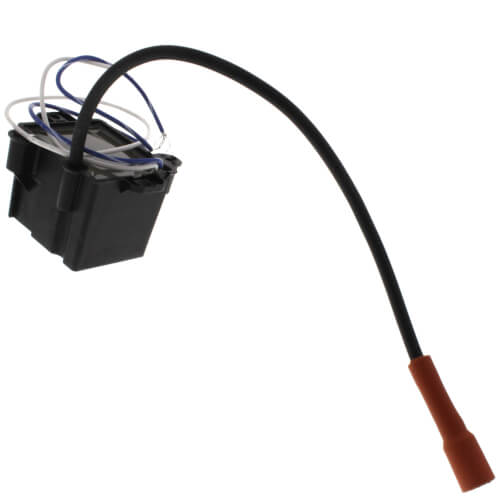

Electronic Ignitor for 301 Gas Burners, 120 V

Description

Feautres
9,000-volt output for smooth gas ignition
Solid state technology yields high performance,
long life and durability
Interrupted-duty rated
Low current draw saves electricity
Epoxy sealant provides water resistance
and heat dissipation
Consistent voltage output across a wide
range of input voltages
Model 42800 models can be mounted on
standard 4×4 j-box
Model 42800 model primary power wires
can be routed through bottom or side of
housing

Specifications:
Power input: 120 VAC, 60 HZ, 40VA
Ignitor output: 9 KV, 45 mA RMS
14â€?High Voltage Wire Rated 150° C, 15 KVDC; bottom exit
Secondary grounding: Single-pole endpoint grounding
Operating temperature limits: +32° F to +140° F
Storage temperature limits: +32° F to +140° F
UL Recognized US & Canada
