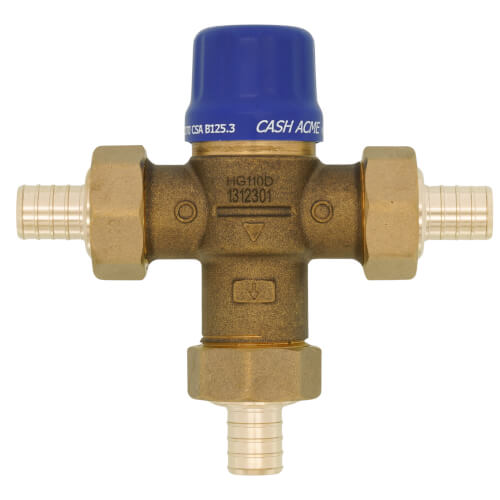

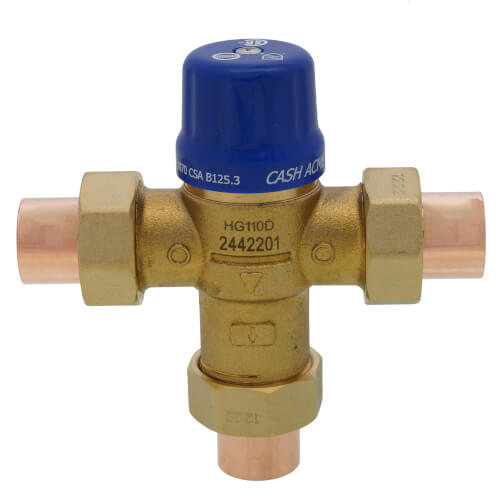

HG-110DLF 3/4″ SharkBite Heatguard Thermostatic Mixing Valve w/ Integral Connectors (Lead Free)

Description

The Heatguard® 110-D is a Temperature Actuated Mixing Valve that mixes hot water with cold to deliver tempered water at a controlled temperature to 120°F (49°C) maximum and is designed to assist in the prevention of scalding.

The Heatguard® 110-D is intended for installation at the water heater to distribute controlled temperature water through a domestic hot water system.

The SharkBite® Heatguard® 110-D incorporates a fast acting, high quality thermostatic
element that senses the outlet water temperature and reacts to maintain a stable delivery
temperature even under changing flows or variations in supply temperatures. The valve also
greatly reduces the outlet flow in the event of a cold water supply failure.

Features
Delivers water at a maximum of 120°F (49°C)
throughout the system: Safer hot water from all
outlets.
Allows the heater to be set at 140°F (60°C) or
higher: Greater effective hot water volume yields
less chance of Legionella bacteria within the cylinder.
Every valve is tested for performance prior to
shipping: Specify and install with confidence!
Robust, low complexity construction:
Superior reliability, improved user safety.
Unique, purpose designed adjuster tool (included with each valve): Minimizes
unauthorized tampering with valve setting.
Listed by IAPMO and ASSE: Inspector friendly,
peace of mind!
