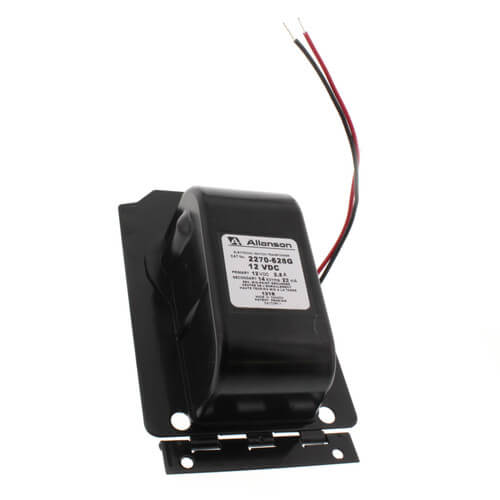

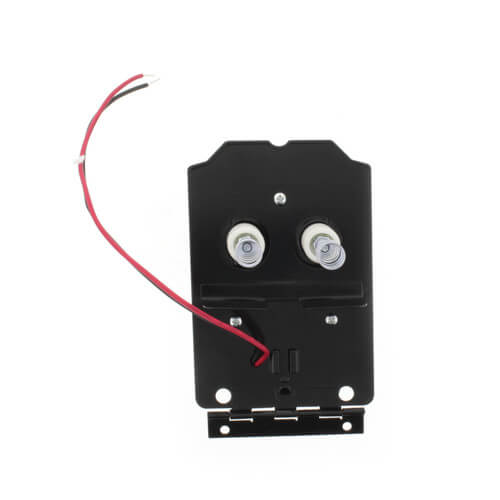

Ignition Transformer for Beckett A, AF, AFG Burner, 12Vdc

Description

Allanson’s electronic ignition transformers are made from unbreakable fire-retardant composite and are 4 times smaller and 1/10th the weight of Iron Core transformers. The 2270 Ignitor is available with a variety of mounting plates and rates 12Vdc.
Features:

History of excellent operation under brownout conditions
Runs cooler, quieter and safer on all types of burners
Meets American and European noise emission standards offering superior EMI and RFI protection
Open Circuit Voltage does not drop off under lower than normal operating primary voltage conditions
Low operating temperature
Extended life expectancy & Energy efficient

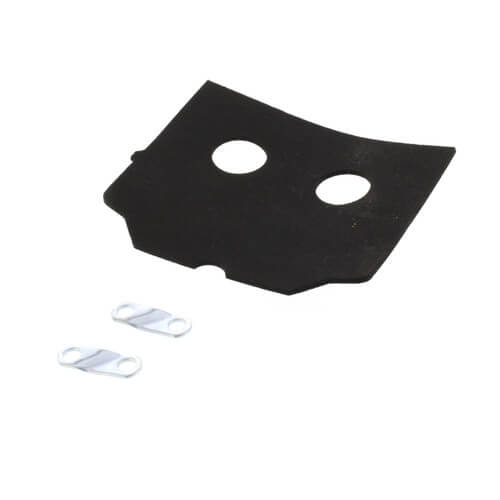

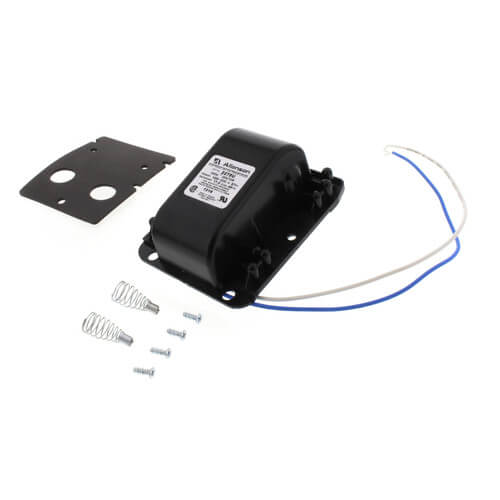

Available in a service kit which contains: two OMNI Ignitors, a selection of mounting plates and universal contact replacement kits

Product Information:

Part #: 2270
Type: 628G
Burner: Beckett A, AF, AFG
Primary Voltage: 12Vdc
Secondary Voltage: 17500
mA: 45
VA: 150
Hertz: 50/60
Ground: Mid Point Ground
