M18 FORCE LOGIC 6T Latched Linear Utility Crimper

Description

Overview
The M18â„?FORCE LOGICâ„?6T Latched Linear Utility Crimper is The Easiest Way To
Make Uniform Crimps. The inline design and 340° rotating head delivers unmatched
access into confined spaces and maximum control in multiple orientations. An
enlarged trigger and dual electronic release buttons enable both left and
right-handed users to easily activate the tool while wearing Class 3 gloves
without changing hand position. The latched head is easily opened and then
secured to ensure that only the intended wire gets crimped. The crimper utilizes
an industry-standard D3 die index allowing it to crimp up to 4/0 line taps. More
space between the die seats enables our users to insert and remove dies while
the latch is closed and to easily align on large connectors. Predictive Force
Monitoring (PFMâ„? constantly measures output force to ensure full pressure is
reached and that the output force is the same over the life of the tool
delivering consistently uniform crimps. The crimper also performs a pre-crimp
battery check to ensure that the battery has enough charge to complete a full
crimp. Equipped with fully enclosed high-speed hydraulics, a POWERSTATE™
Brushless Motor, REDLINKâ„?Electronics, and REDLITHIUMâ„?Batteries, the tool
provides unmatched reliability in the toughest conditions. Integrated with our
ONE KEYâ„?Technology, the crimper stores real-time crimp data.

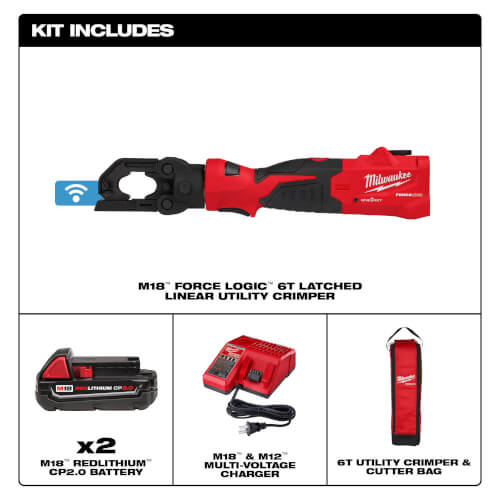

Includes
* (1) M18â„?FORCE LOGICâ„?6T Latched Linear Utility Crimper
* (2) M18â„?REDLITHIUMâ„?CP2.0 Battery(48-11-1820)
* (1) M18â„?& M12â„?Multi-Voltage Charger(48-59-1812)
* (1) 6T Utility Crimper & Cutter Bag(48-22-8277)

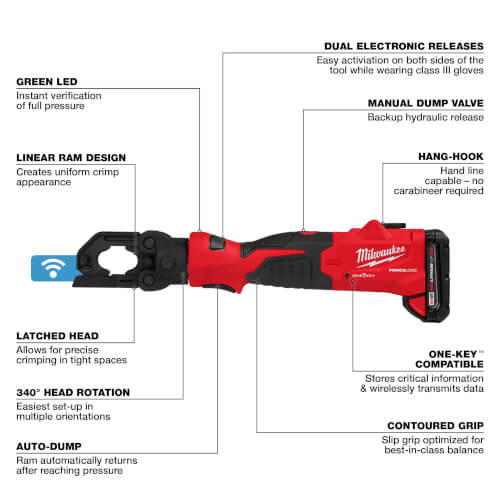

Product Features
* Inline design delivers unmatched access
* Lightest weight allows maximum control
* PREDICTIVE FORCE MONITORING (PFMâ„? ensures full pressure
* Inline design and 340° rotating head for unmatched access into confined
spaces
* Enlarged trigger and slim grip area designed specifically for use with Class
3 gloves
* Easy to reach dual electronic release buttons enable easy activation for
right- and left-handed users
* Compatible with all industry standard W-Style dies
* Optimized latched head enables dies to be inserted while latch is closed
* Hydraulic system optimized for consistent performance from -4° to 140° F

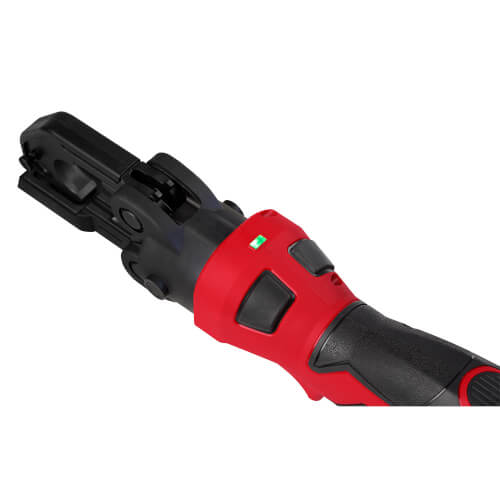

* Instant verification of a successful cycle with Green LED
* Pre-crimp battery check automatically ensures enough charge to complete each
crimp
* Records & Stores Every Crimp Made for Professional Report Building through
ONE-KEY™
* Compatible with the entire M18â„?System

Product Specifications
* Voltage: 18V
* Battery Type: 18 Volt Lithium Ion
* Tool Warranty: 5 Year Tool, 2 Year Battery
* Power Source: Cordless
* Motor Type: Brushless
* Length: 17.25 in
* Weight: 6.3 lb
* Height: 3.75 in
* Width: 3 in
* Brushless: Yes
* Battery System: M18
