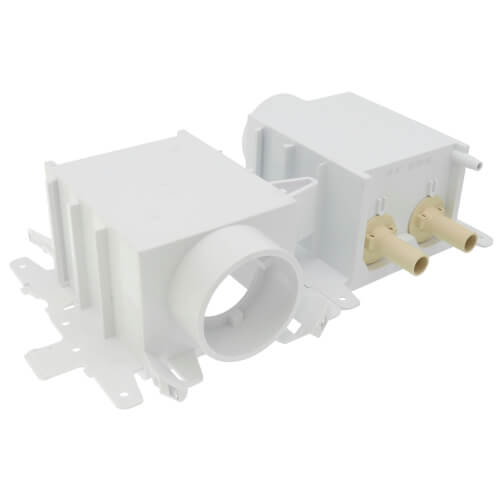

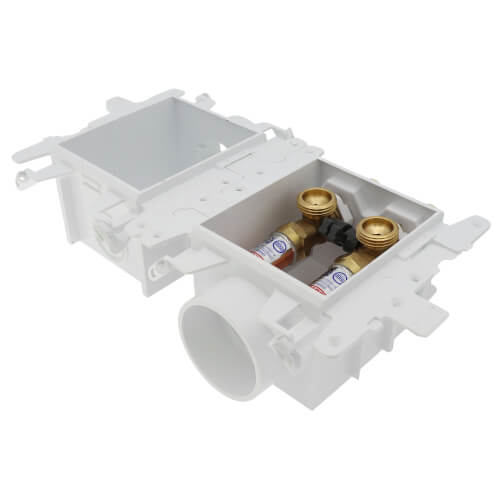

Moda CPVC (Male) Washing Machine Outlet Box w/ Water Hammer Arrestor (Contractor Pack)

Description

Oatey MODAâ„?washing machine outlet boxes shall be used in residential or commercial applications requiring supply valves and a waste drain recessed in the wall. The MODAâ„?washing machine assembly contains a valve box and a drain box, connected by inter-locking wing flanges that can be easily disassembled and re-assembled. The inter-locking wing flanges shall allow installation on a single stud, between two studs or on separate walls, without the need for additional components. Valves shall be a two-piece design, permitting field replacement, and shall be secured with a stainless steel retention clip. Valves are available with or without water hammer arrestors and shall be installed upright or inverted. The assembly shall include a removable quarter-turn plug for DWV testing, and shall include an emergency drain port for added protection from hose leaks.

Features
One universal faceplate is compatible with all box types
All boxes can snap to one another, and common brackets can be used on any MODA supply box.
Advanced snap-lock design allows assembly and disassembly with ease
Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms.
Plumber-preferred, quarter turn test plug with gasket provided with every drain box. No knock outs falling down the drain pipe!
Stands up to the roughest job site abuse, and no transition cement needed when solvent welding PVC pipe.
Two piece valve design makes valve replacement easy to repair, without damaging drywall

Specifications
Tailpiece: CPVC
Hammer Arrestor: Yes
Brand: Oatey
Valve Size: 0.75 in.
Color: White
Material: PVC
Valve Body Material: Brass
Product Line: MODA
