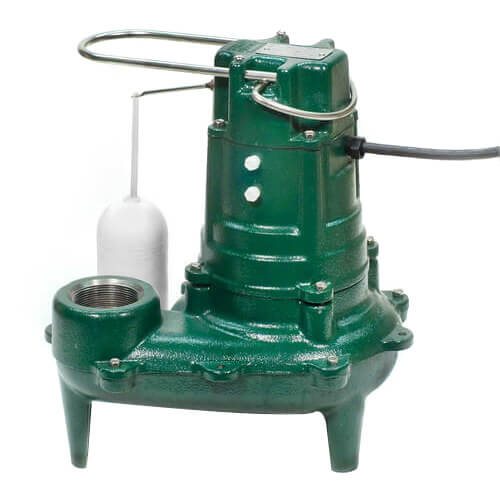

Model BN267 Waste-Mate Cast Iron Sewage Pump w/ Variable Level Float Switch – 115 V

Description

Note: This item has a cast iron impeller
Features:
Float operated, submersible (NEMA 6) 2-pole mechanical switch
Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
Cast iron base
Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH). Model 267 available with cast iron impeller option. (Cast iron impeller standard on 3 Ph models)
Not affected by materials normally found in drainage and sewage pumps
Stainless steel screws, bolts, handle, guard and arm and seal assembly
Neoprene square ring & gasket
Oil filled, hermetically sealed motor
Oil lubricated bearings
Carbon and ceramic shaft seal
Passes 2? (50mm) spherical solids
2″ NPT discharge
On point: 12? (30 cm) (automatic units)
Off point: 4? (10 cm) (automatic units)
Corrosion-resistant, powder coated epoxy finish
Completely submersible
Watertight and dust tight
This is an Automatic model packaged with a piggyback variable level float switch
Automatic reset thermal overload protection (1 Phase only)
