Model BN292 High Head Waste-Mate Cast Iron Sewage Pump w/ Variable Level Float Switch – 115 V, 1/2 HP

Description

Single and double seal submersible sewage or dewatering pumps. Includes 20′ variable level float switch
Features:
Durable cast iron constructed switch case, base, motor and pump housing
No sheet metal parts to rust or corrode
All cast iron class 25-30 25000# tensile strength
Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
Oil-filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
Bronze class 84-8-0-4, non-clogging vortex impeller
Maximum temperature for sewage or dewatering 130°F (54°C), 120°F (49°C) for WD295
If over 130°F (54°C), consult factory
Shaft seal – stainless steel carbon & ceramic rotary
Corrosion resistant powder coated epoxy finish
Upper sleeve bearing and lower ball bearing running in bath of oil
Neoprene square ring & gasket
All models pass 2″ spherical solids
Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
On point: 14-3/4″
Off point: 5″
2″ NPT female flanged vertical discharge (3″ available upon request)
100% computerized tested
Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

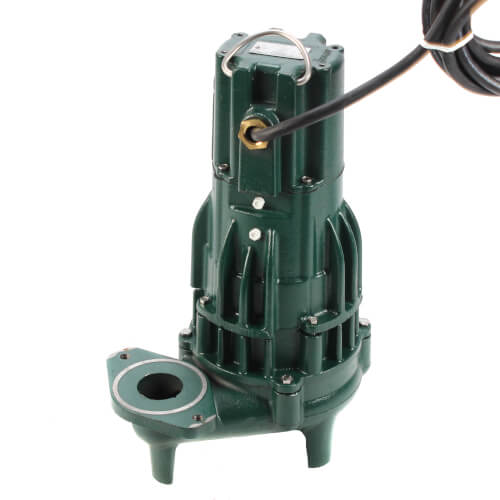

NOTE: Image is representative. Actual product may vary from image depicted.
