Model M292 High Head Waste-Mate Automatic Cast Iron Sewage Pump – 115 V, 1/2 HP (Single Seal)

Description

Features:
Single and double seal submersible sewage or dewatering pumps
Durable cast iron constructed switch case, base, motor and pump housing
No sheet metal parts to rust or corrode
All cast iron class 25-30 25000# tensile strength
Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
Oil-filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
Maximum temperature for sewage or dewatering 130°F (54°C), 120°F (49°C) for WD295
If over 130°F (54°C), consult factory
Shaft seal – stainless steel carbon & ceramic rotary
Corrosion resistant powder coated epoxy finish
Upper sleeve bearing and lower ball bearing running in bath of oil
Neoprene square ring & gasket
All models pass 2″ spherical solids
Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
On point: 14-3/4″
Off point: 5″

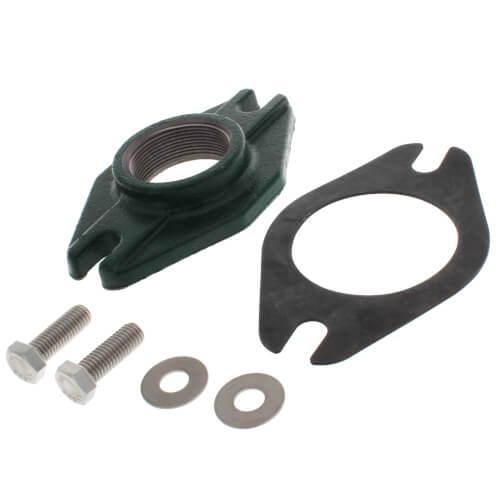

2″ NPT female flanged vertical discharge (3″ available upon request)
100% computerized tested
Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
