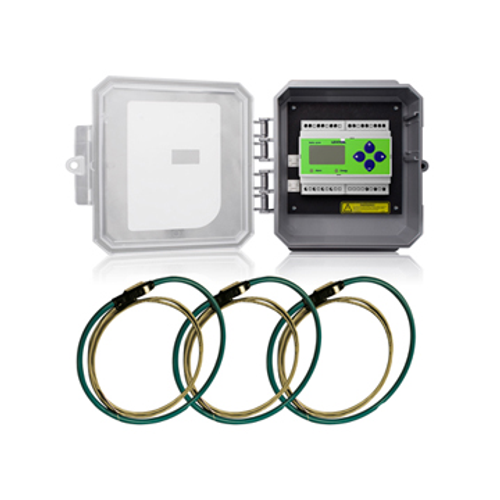

Outdoor Bi-Directional 3PH 3W/4W Modbus Submeter (3) 24″ Rogowski Current Transformers (CT)

Description

Features
* Renewable energy applications such as solar panels and wind
* Rogowski CT Options (20-5,000A)
* Energy monitoring for AMR/BAS/BMS/EMS systems
* Energy conservation and cost reduction
* Measurement and verification
* Bidirectional monitoring
* Load profiling and benchmarking
* Green building initiatives and government mandates
* DIN rail mount or NEMA 4X enclosure
* Tenant cost allocation
* Industrial temperature range: -22-158°F
* Industrial monitoring
* The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter
Kits feature bidirectional monitoring specifically designed for renewable
energy applications. The Series 4100 Meter Kits measure power imported from
the utility grid and power exported from renewable energy sources like solar
panels. The Series 4100 Meters are available in standalone DIN rail mount or
a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with
either split core or flexible rope-style Rogowski Current Transformers (CTs)
for compact or irregularly shaped conductors. Do you have a question about
submetering? Contact us to learn more.
* Versatile input voltage: 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
* 50/60 Hz

Specifications
* Amperage: 5000 A
* Country of Origin: United States
* Enclosure: Outdoor (NEMA 4X)
* Product Type: Submeter and Current Transformer(s)
* Meter Configuration: Single Meter
* Communication: ModBus/RTU, BACnet MS/TP
* Voltage: Universal Bi-Directional 3-phase 3W/4W
* Product Line: Series 4100 Kit
* CTs Included: 3 Rogowski Coil CTs
* RoHS Compliant: FALSE
