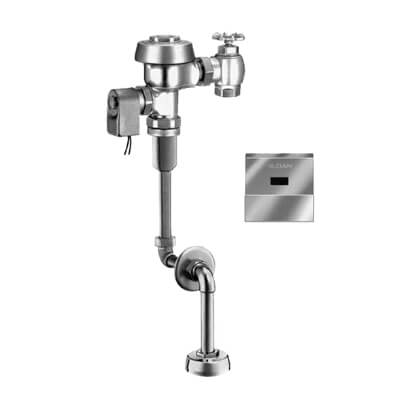

Royal 197-0.5-WB ESS Concealed Sensor Hardwired Urinal Flushometer, L Dimension 11-3/4″ – 12-3/4″ (0.5 GPF/1.9 LPF)

Description

Water Saver (0.5 gpf) Concealed, Sensor Operated Royal(R) Model Urinal Flushometer, enclosed behind a 13” x 17” Wall Box with Stainless Steel Access Panel, for 3/4” top spud urinals.
FeaturesPERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
OPTIMA(R) EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Non-Hold-Open Integral Solenoid Operator
13″ x 17″ EASY ACCESS(R) Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
3/4″ I.P.S. Wheel Handle Bak-Chek Angle Stop
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection, Spud Coupling and Flanges for ¾” Exposed Top Spud
Sweat Solder Adapter
Chrome Plated Exposed Flushometer Parts. High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
