Series 41 Heat Pump Manifold w/ 3-1/8″ Refrigerant Gauges (R22/R407C/R410A)

Description

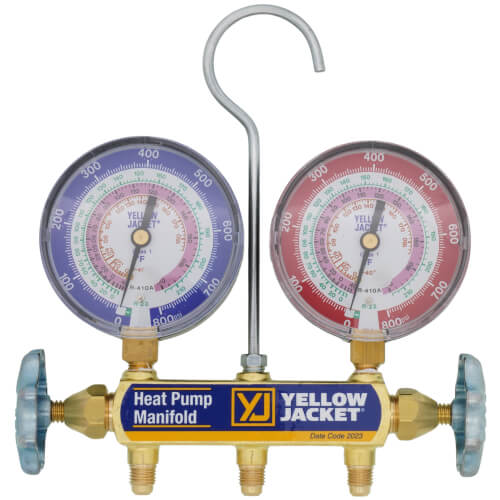

The Yellow Jacket 42041 Heat Pump features two 800 psi gauges to read all heat pump pressure conditions. Traditional low side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the low side gauge of the Yellow Jacket Heat Pump Manifold is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode or transition.

Both black steel case gauges are 3-1/8″ with 1% accuracy full scale. The heat pump manifold temperature scales cover the three most common refrigerants used in heat pumps: R-22, R-407C and R-410A. The 42041 does not include hoses.

Features:
Large 3-1/8″ gauges feature steel cases with polycarbonate crystal
Color coded scales – large dials are bold and easy to read
Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
LOW Side Gauge: 0 to 800 PSI
HIGH Side gauge: 0 to 800 PSI
Proven sliding double “O” ring pistons reduce wear
Long Life nylon seats
Full porting maximizes capacity and flow
Full size metal valve handles for easy operation
Forged brass body for durability
Hose assemblies UL recognized for 4000 PSI (275 bar) burst ans 800 PSI (55 bar) working poressure (File# SA9737)
For use with refrigerants: R-22, R-407C, R-410A
Limited lifetime warranty on manifold bar and valves, NOT gauges
Made in the USA
