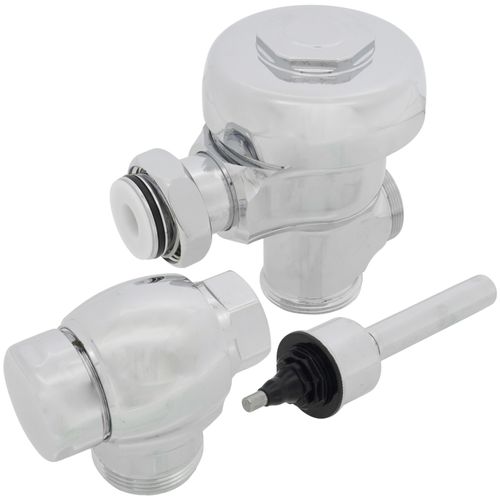

Sloan 186-0.125 Exposed Manual Single Flush Urinal Flushometer (0.125 GPF/0.5 LPF)

Description

0.125 gpf, Dual-Filtered Bypass, Polished Chrome Finish, Fixture Connection Top
Spud, Single Flush, Sloan® Exposed Manual Urinal Flushometer.

Specifications:
* Flush Volume: 0.125 gpf (0.5 Lpf) Finish: Polished Chrome (CP) Valve:
Diaphragm Bypass: Dual-Filtered Bypass (DBP) Valve Body Material: Semi-red
Brass Fixture Type: Urinal Fixture Connection: Top Spud Rough-In Dimension:
11-1/2″ (292mm) Spud Coupling: 3/4″ (19mm) Supply Pipe: 3/4″ (19mm)

Features:
* Quiet, Exposed, Diaphragm Type, Chrome Plated High Efficiency Urinal
* PERMEX® Synthetic Rubber Diaphragm with Dual Bypass
* 3/4″ I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
* Vacuum Breaker with Flush Connection

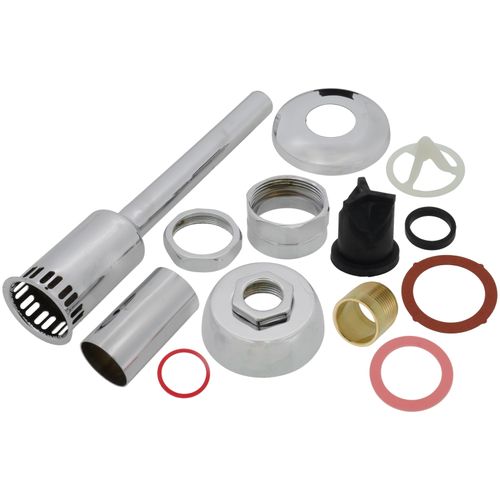

* Spud Coupling and Spud Flange for 3/4″ Top Spud
* Sweat Solder Adapter with Cover Tube and Cast Wall Flange
* Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water
Conservation
* High Efficiency flush accuracy
* Diaphragm, Handle Packing and Vacuum Breaker Molded from
* PERMEX® Rubber Compound for Chloramine Resistance
* ADA Compliant Metal Oscillating Non-Hold-Open Handle
* Watersense compliant when used with a 0.125 gpf WaterSense fixture
