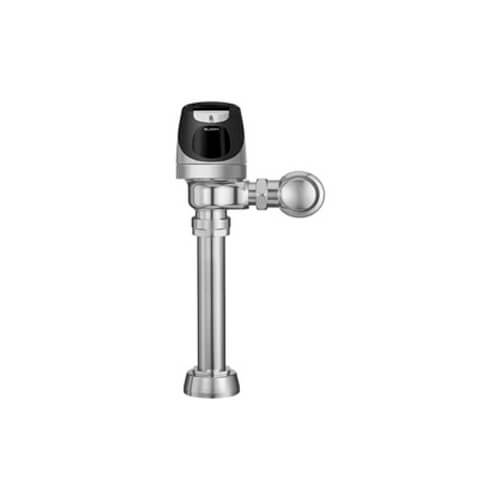

Solis 8111-1.6/1.1 Exposed Solar-Powered Dual Flush Water Closet Flushometer (1.1 GPF/1.6 GPF)

Description

Sloan’s Exposed, Solar Powered, Sensor Activated Solis Model Water Closet Flushometer for floor mounted or wall hung top spud bowls (for either left or right hand supply) w/ Smart Sense Technology. This dual-flush water closet Flushometer uses light to charge a highly efficient capacitor, providing power even in rooms with occupancy-controlled lighting.

The dual-flush model has two flush cycles: Users can choose the full 1.6 gpf/6.0 Lpf flush for solid waste or the reduced flush of 1.1 gpf/4.2 Lpf for liquid waste. If the user does not press a button, the Flushometer’s Dual-Flush Smart Sense Technology takes over and automatically initiates a flush cycle, based on how long the user remains in the sensor range.

If the user is present for less than 1 minute and leaves the sensing zone, a reduce flush initiates eliminating liquid and paper waste, saving 1/2 gallon of water. If the user is present for greater than 1 minute and leaves the sensing zone, the full flush initiates eliminating solid waste and paper.

Features:

Flush Cycle – Full Flush (Large Button – 1.6 gpf/ 6.0 Lpf) / Reduced Flush (Small Button – 1.1 gpf/ 4.2 Lpf)
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from artificial indoor light, either incandescent or fluorescent light, and use it as the
energy source. The solar cell can provide approximately 100% power with 650 Illuminance (lux).
(4) Size AA battery back-up power source (6 Years @ 4,000 Flushes/Month)
“Low Battery” flashing LED
Reduces water volume by up to 30% when a reduced flush occurs
PERMEX Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Metal Cover with replaceable Lens Window
Infrared sensor range adjustment screw
User friendly three (3) second Flush Delay
Courtesy Flush Override Button
Initial Set-up Range Indicator Light (first 10 minutes)
1″ I.P.S. Screwdriver Bak-Chek® Angle Stop
Free Spinning, Vandal Resistant Stop Cap
Adjustable Tailpiece
High Black Pressure Vacuum Breaker Flush Connection w/ One-Piece Bottom Hex Coupling Nut
Spud Coupling & Flange for 1-1/2″ Top Spud
Sweat Solder Adapter w/ Cover Tube and Case Wall Flange w/ Set Screw
High copper, low Zinc brass castings for dezincification resistance
Fixed metering bypass and no external volume adjustment to ensure water conservation
Flush accuracy controlled by CID Technology
