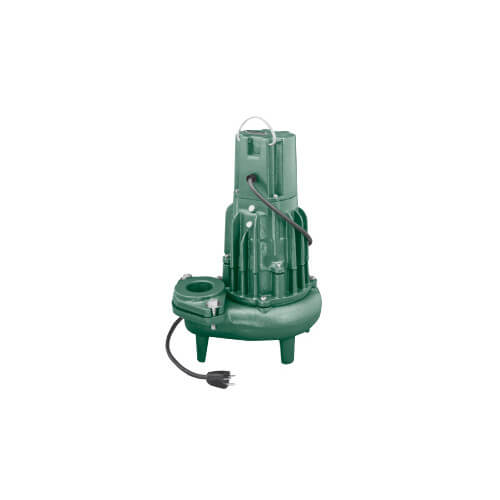

Waste-Mate F294 Single Seal Manual Sewage Pump, 2″ Discharge (230V, 1.5 HP, 9.5A)

Description

Zoeller’s Single Seal High Head Waste-Mate Submersible Sewage Pump is suitable for effluent and dewatering applications.

Features:
Durable cast iron constructed switch case, base, motor and pump housing
No sheet metal parts to rust or corrode
All cast iron class 25-30 25000# tensile strength
Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
Oil filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
Maximum temperature for sewage or dewatering: 130°F (54°C) standard
If over 130°F (54°C), consult factory.
Shaft seal – stainless steel carbon & ceramic rotary
Corrosion-resistant, powder coated epoxy finish
Upper and lower ball bearing running in a bath of oil
Neoprene square ring & gasket
All models pass 2″ (50 mm) spherical solids
Major width (single seal): 12-7/8″ (32.7 cm)
Major height (single seal): 19-5/16″ (49 cm)
Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
On point: 15-3/4″ (37.5 cm)
Off point: 5-1/4″ (12.7 cm)
Specify 2″ or 3″ NPT female flanged vertical discharge
100% computerized tested
Automatic units available
