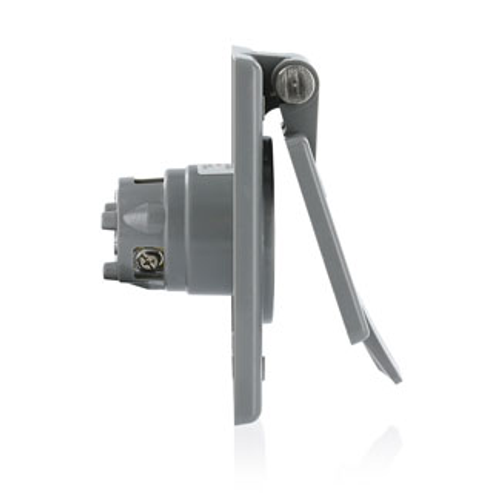

15A, 250V Flanged Inlet Locking Receptacle, Industrial Grade

Description

Features
* Industry exclusive limited lifetime warranty
* Ratings and NEMA I.D. permanently marked on device
* Rugged nylon construction resists impact, sunlight, chemicals, and rough use
* L6-15P
* One piece contacts reduce friction and overheating

Specifications
* Current Limiting: Full Rated Current
* Dielectric Voltage: Withstands 2000V per UL498
* NEMA: WD-6
* UL498: File E13393
* Terminal Screws: Brass 10-32
* Color: White
* Face Material: Nylon
* Flammability: Rated V-2 per UL 94
* UL Fed Spec WC-596: File E13393
* Termination: Back
* Environment: Dry
* Voltage: 250 VAC
* Grounding: Grounding
* Grounding Screw: Brass 8-32
* Brand: Black and White
* Wire: 3
* Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
* Body Material: Nylon
* Warranty: Limited Lifetime Warranty Warranty
* Line Contacts: Solid Brass
* Terminal Accom.: 18-10 AWG
* Country of Origin: Mexico
* Pole: 2
* CSA C22.2 No. 42: File LR-406
* Product ID: Ratings and NEMA I.D. permanently marked on device
* Operating Temperature: -40 °C to 60 °C
* ANSI: C-73
* At Rated Voltage: 1-1/2 HP
* Screw Terminal Torque: 10-14 in-lbs
* Strap Material: Thermoplastic Nylon
* Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
* RoHS Compliant: TRUE
* NOM: 57
* Amperage: 15 A
