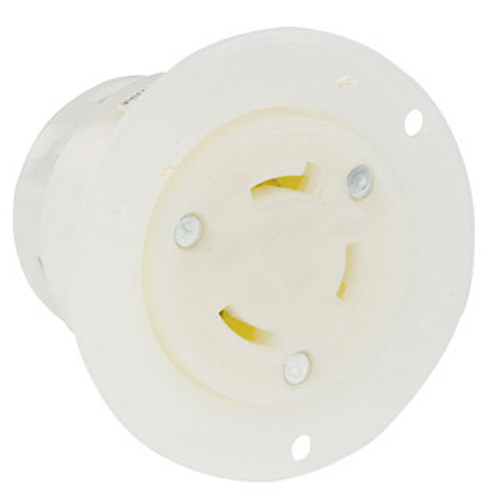

15A, 250V Power Outlet Receptacle, Locking Blade, Industrial Grade

Description

Features
* L6-15R
* Leviton’s industry leading locking devices, such as our Black & White line of
industrial grade plugs and connectors and our V-0-Max line of industrial
grade flush receptacles, offer superior performance, long lasting reliability
and other features that are backed by a lifetime warranty.

Specifications
* Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
* Termination: Standard Wire Wells
* Warranty: 10-Year Limited
* Operating Temperature: -40 °C to 60 °C
* Strap Material: Nylon
* Cover and Plate Material: Glass-Filled Thermoplastic
* Product ID: Ratings and NEMA I.D. permanently marked on device
* Grounding Screw: Brass 8-32
* Terminal Screws: Brass 10-32
* CSA C22.2 No. 42: File LR-16347
* Current Limiting: Full Rated Current
* RoHS Compliant: FALSE
* Face Material: Nylon
* Screw Terminal Torque: 10-14 in-lbs
* Line Contacts: Brass
* At Rated Voltage: 1-1/2 HP
* Flammability: Rated V-2 per UL 94
* Country of Origin: United States
* Body Material: Nylon
* Color: Gray
* UL498: File E13399
* Wire: 3
* Dielectric Voltage: Withstands 1500V per UL498
* Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
* Grounding: Grounding
* Terminal Accom.: 18-10 AWG
* Voltage: 250 VAC
* Pole: 2
* Amperage: 15 A
* ANSI: C-73
* NEMA: WD-6
